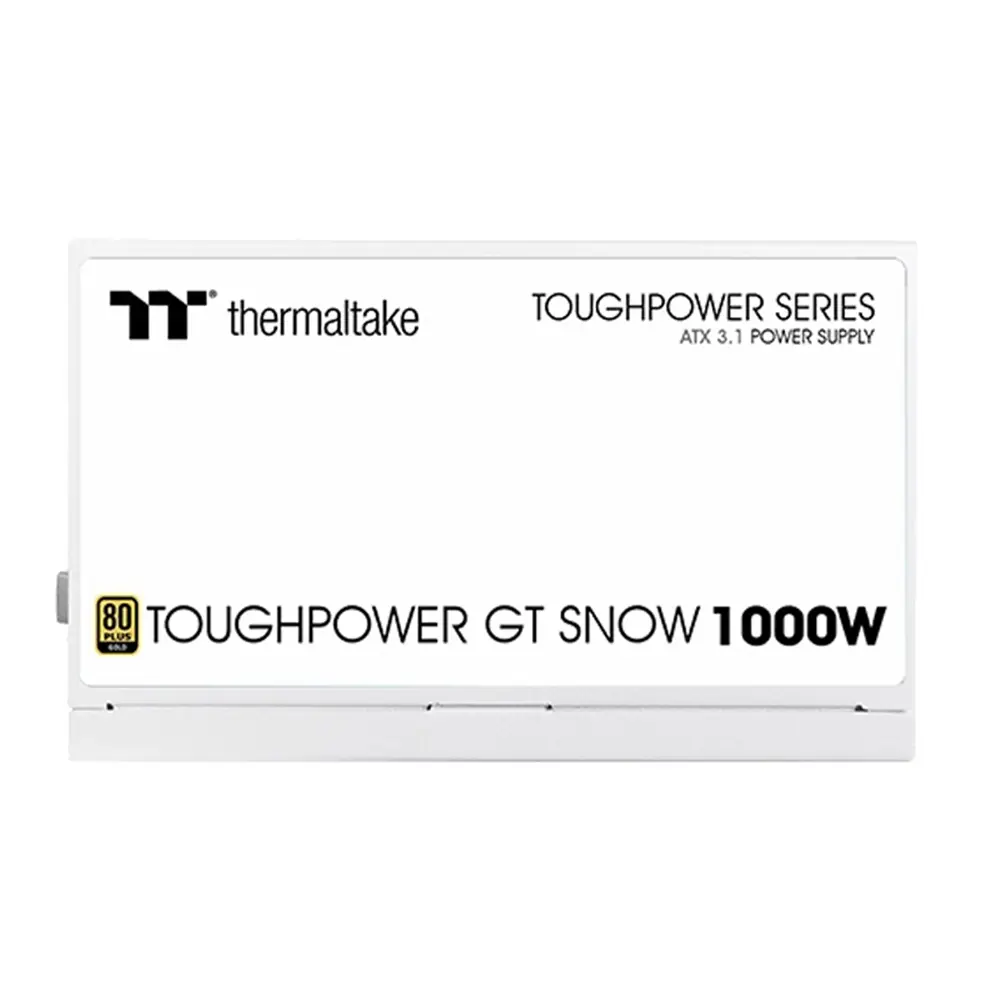

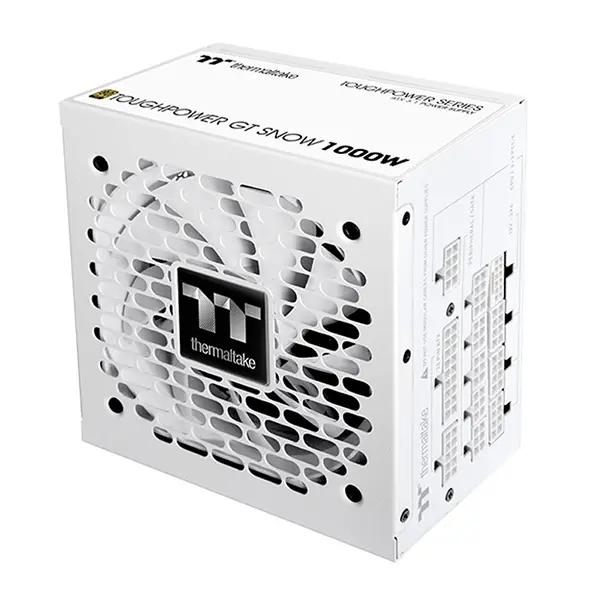

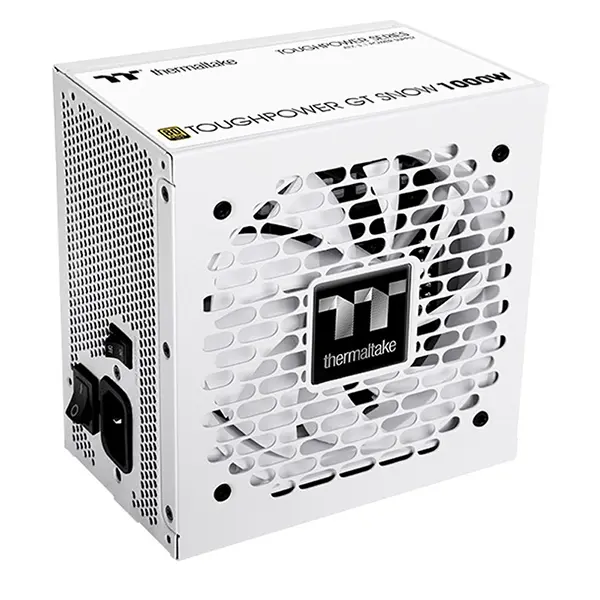

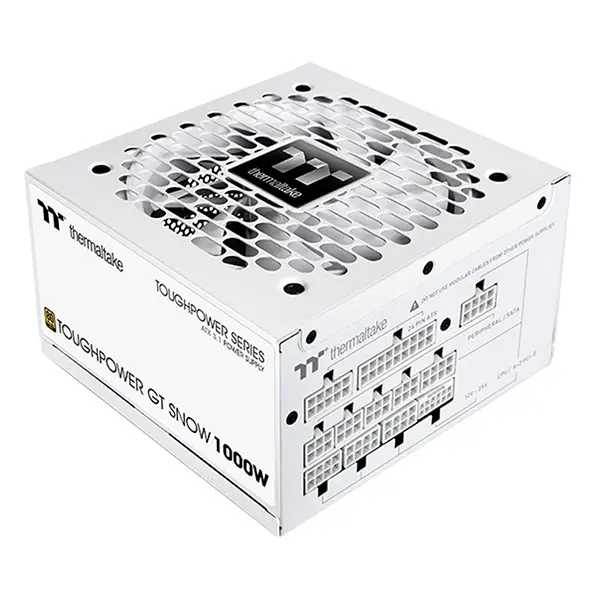

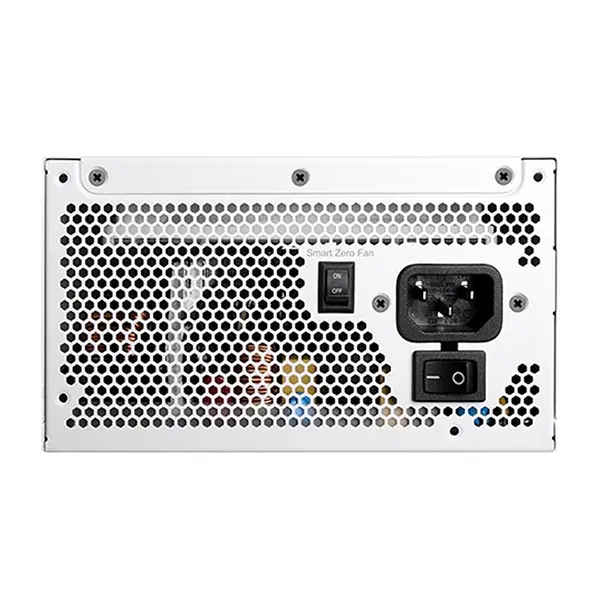

Thermaltake Toughpower Power Supply GT Snow/1000W/Fully Modular/Non Light/Full Range/An X Features

General Specifications

• Model: TPD-1000AH2FXG-3
• P/N: PS-TPT-1000FNFAG*-W
• Wattage: 1000W
• Color: Snow (White)
• Dimensions: 150 × 86 × 140 mm
• Form Factor: ATX

Electrical Performance

• Max Output Capacity: 1000W
• Active PFC
• Power Good Signal: 100–250 ms
• Hold-Up Time: >17 ms at 80% load
• Input Voltage: 100–240V
• Input Frequency: 50–60Hz
• Input Current: 15–10A
• Efficiency: 80 PLUS Gold Certified (115V input)
• MTBF: 100,000+ hours

Environmental Specs

• Operating Temperature: 0°C – 40°C
• Operating Humidity: 5% – 85% (non-condensing)
• Storage Temperature: -40°C – 70°C
• Storage Humidity: 5% – 95% (non-condensing)

Cooling

• 12cm Hydraulic Bearing Fan

Connectors

• PCI-E 6+2 Pin: 5
• PCIe 12+4 Pin (600W): 1

Protections

• OVP / UVP / OCP / OPP / OTP / SCP
  (Over/Under Voltage, Over Current, Over Power, Over Temp, Short Circuit)
