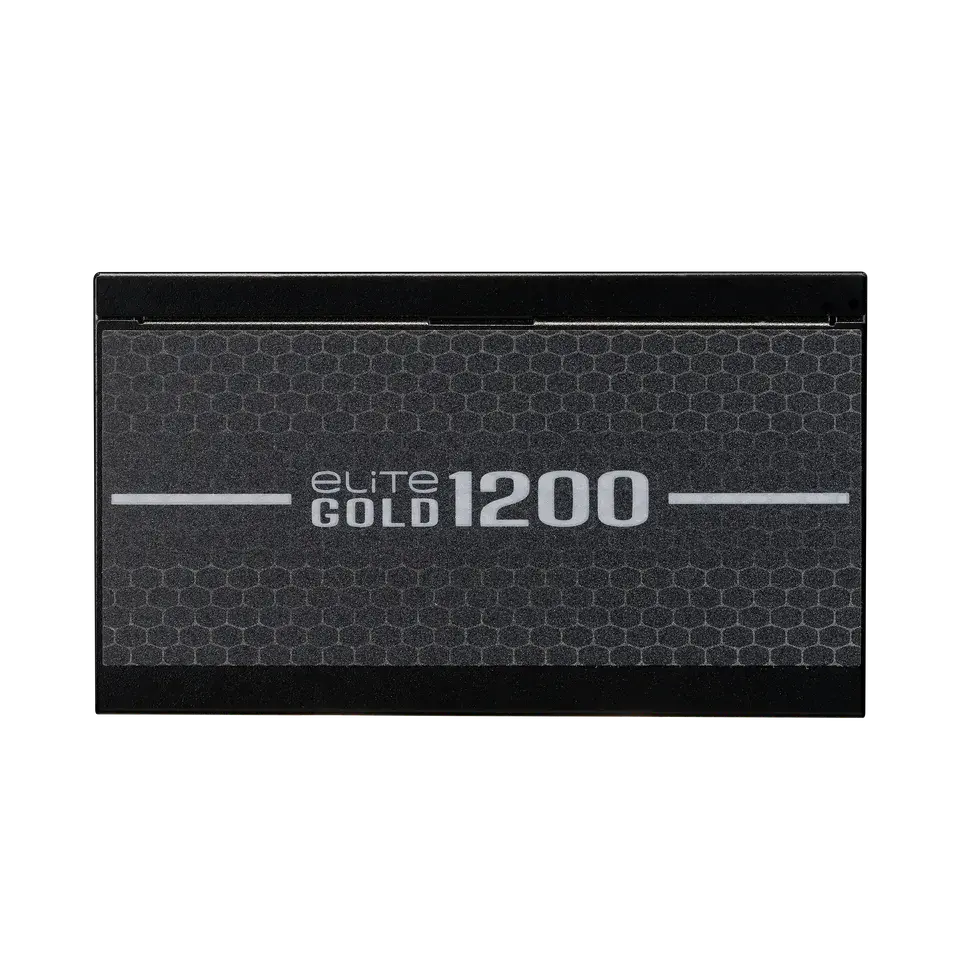

Cooler Master Elite Gold 1200W Power Supply Black - Features

• Supports ATX 3.1 and PCIe Gen 5.1 standards
• Ideal for RTX 50 GPUs
• Stable performance under high loads at up to 40°C
• Quiet, long-life FDB fan cooling
• 1200W output with 80 Plus Gold-certified efficiency
• Fully modular embossed cable design
• Reliable 5-year warranty

HIGH-POWER GOLD PERFORMANCE FOR GAMING AND WORKSTATIONS

Cooler Master Elite Gold 1200 powers high-end gaming rigs and professional systems with ATX 3.1 support - ideal for RTX 50 GPUs. It offers 80 Plus Gold efficiency, reliable operation up to 40°C, quiet FDB cooling, embossed modular cables, dual EPS connectors, and a 5-year warranty for dependable, high-load performance.

Compatible with ATX 3.1 and PCIe Gen 5.1 standards

ATX 3.1 provides tighter voltage and current regulation, supporting up to 200% peak power. The Elite Gold 1200 meets full ATX 3.1 specs and supports PCIe Gen 5.1 for stable next-gen performance with RTX 50 GPUs and future high-power cards.

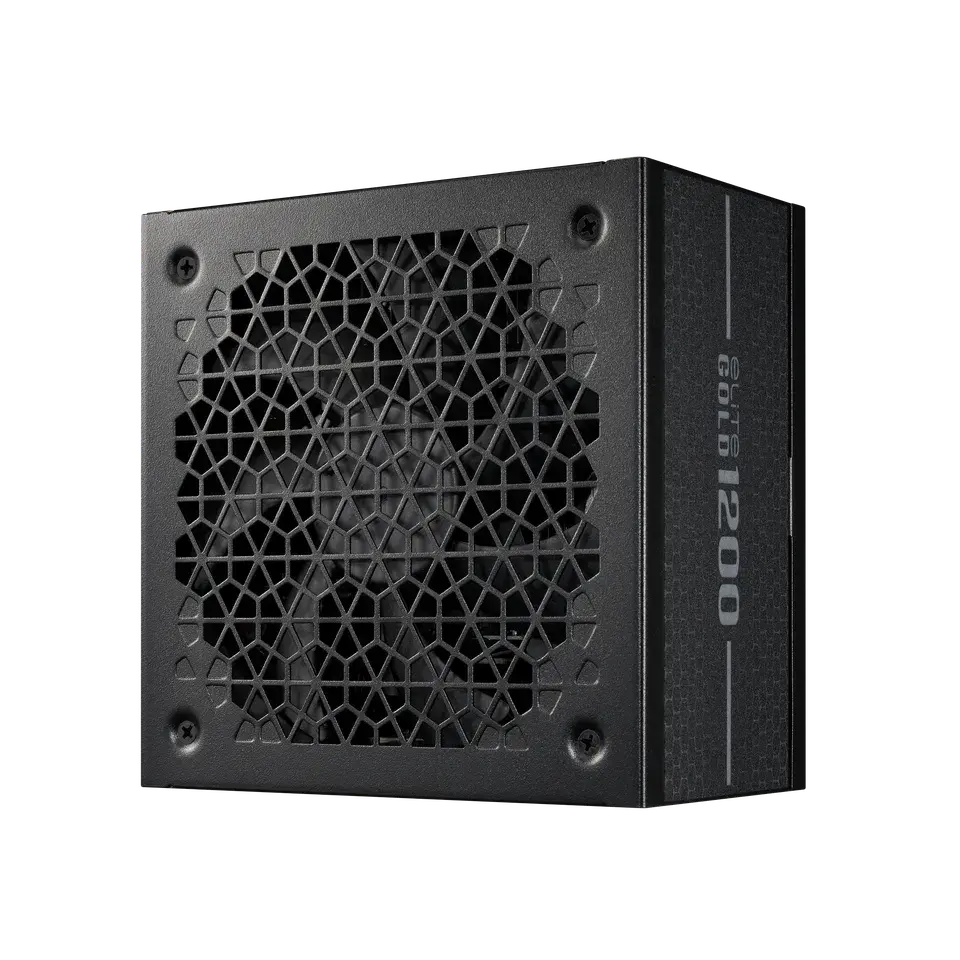

QUIET FDB FAN

Fluid Dynamic Bearing fan ensures long-lasting, stable, and quiet cooling. Fan speed adjusts automatically based on power and stops when the system is idle or under low load (below 30%).

SPECIFICATIONS

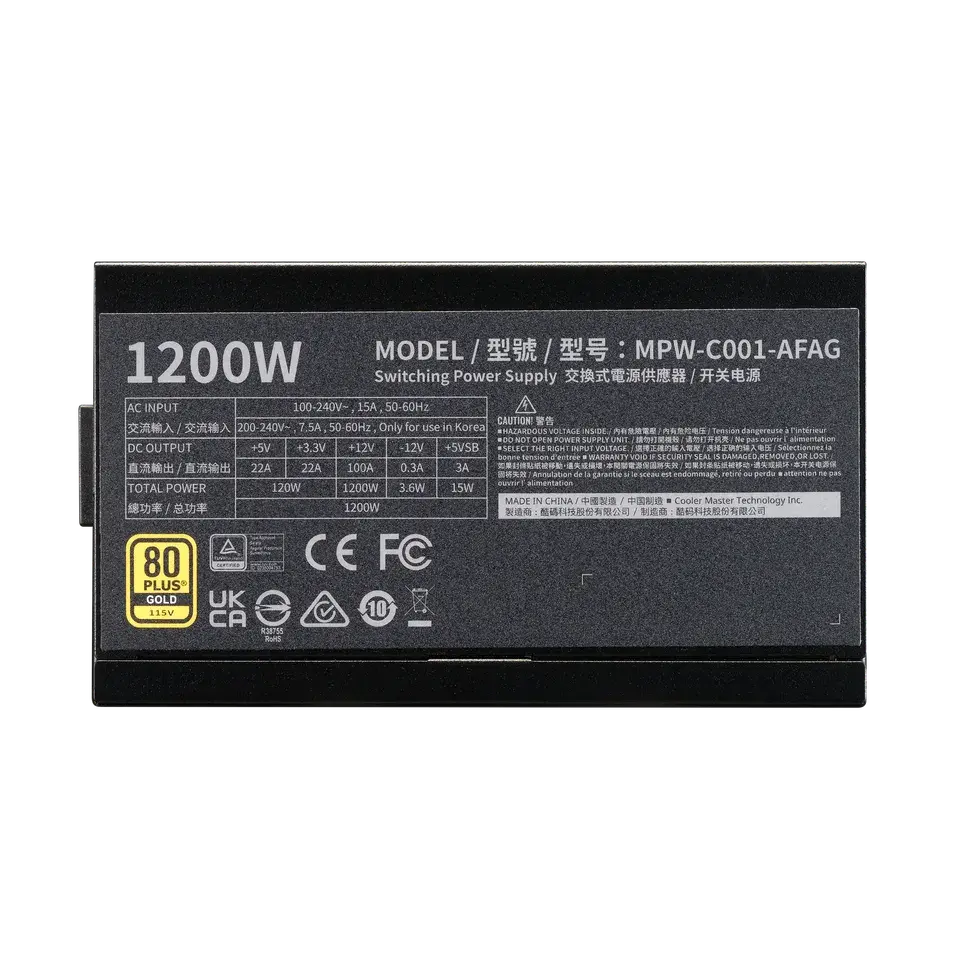

• ATX Version ATX 12V Ver. 3.1
• PFC Active PFC
• Input Voltage 100-240V
• Input Current 7.5 ~ 15A
• Input Frequency 50-60Hz
• Dimensions (L x W x H) 150 x 150 x 86 mm
• Fan Size 135mm
• Fan Bearing FDB
• Efficiency ≥90% @ Typical Load
• 80 PLUS Rating 80 PLUS Gold
• ErP 2014 Lot 3 Yes
• Operating Temperature 0-40°C
• Power Good Signal 100 - 150 ms
• Hold Up Time≥16 ms at 80% Load
• MTBF>100,000 hours​ @ 25℃ ambient
• ProtectionsUVP / OVP / OPP / OTP / SCP
• RegulatorycTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH

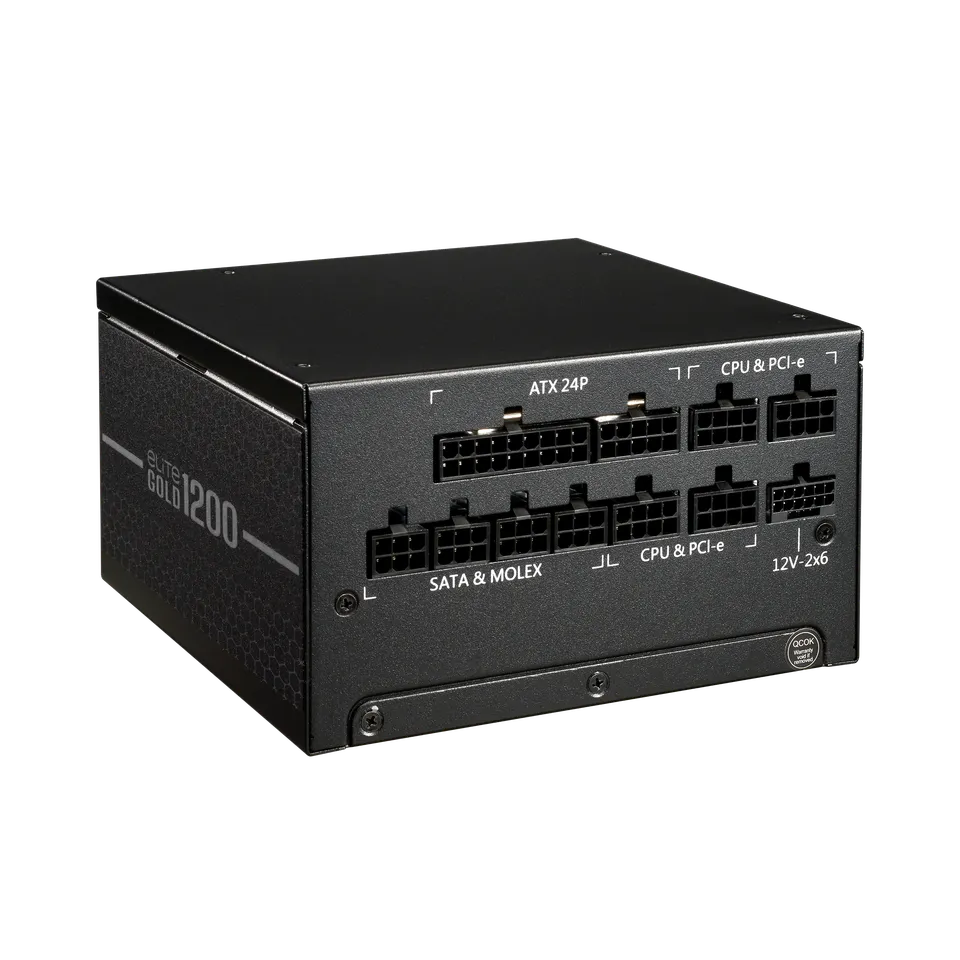

• ATX 24 Pin Connectorsx1 = 1 (600mm)
• EPS 4+4 Pin Connectorsx2 = 2 (700mm)
• SATA Connectorsx9 = 3 (500+100+100mm)
• Peripheral 4 Pin Connectorsx3 = 1 (500+100+100mm)
• PCI-e 6+2 Pin Connectorsx6 = 3 (550+120mm)
• 12+4 Pin Connectorsx1 = 1 (600mm)
• SeriesElite Series
• Form FactorATX
• Watts1200W
• ModularFully Modular
• 80 Plus EfficiencyGold
