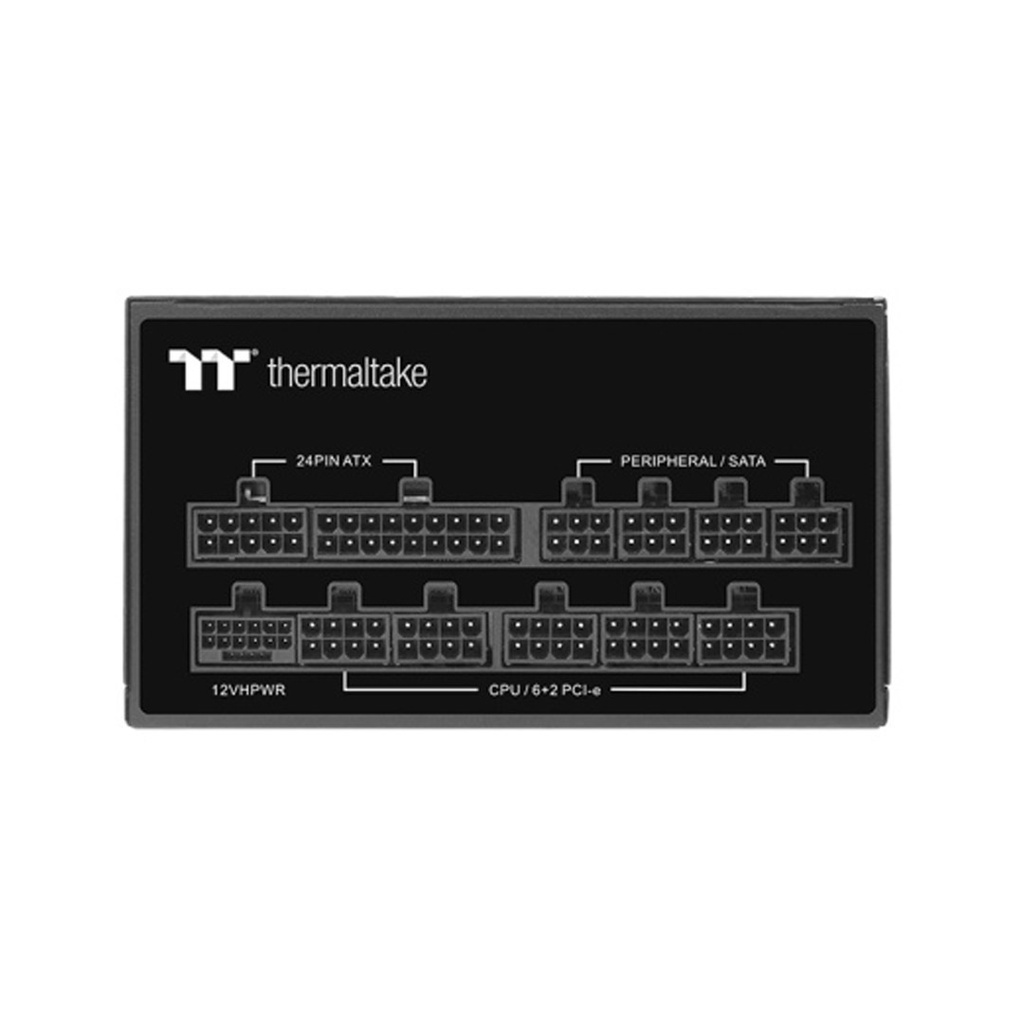

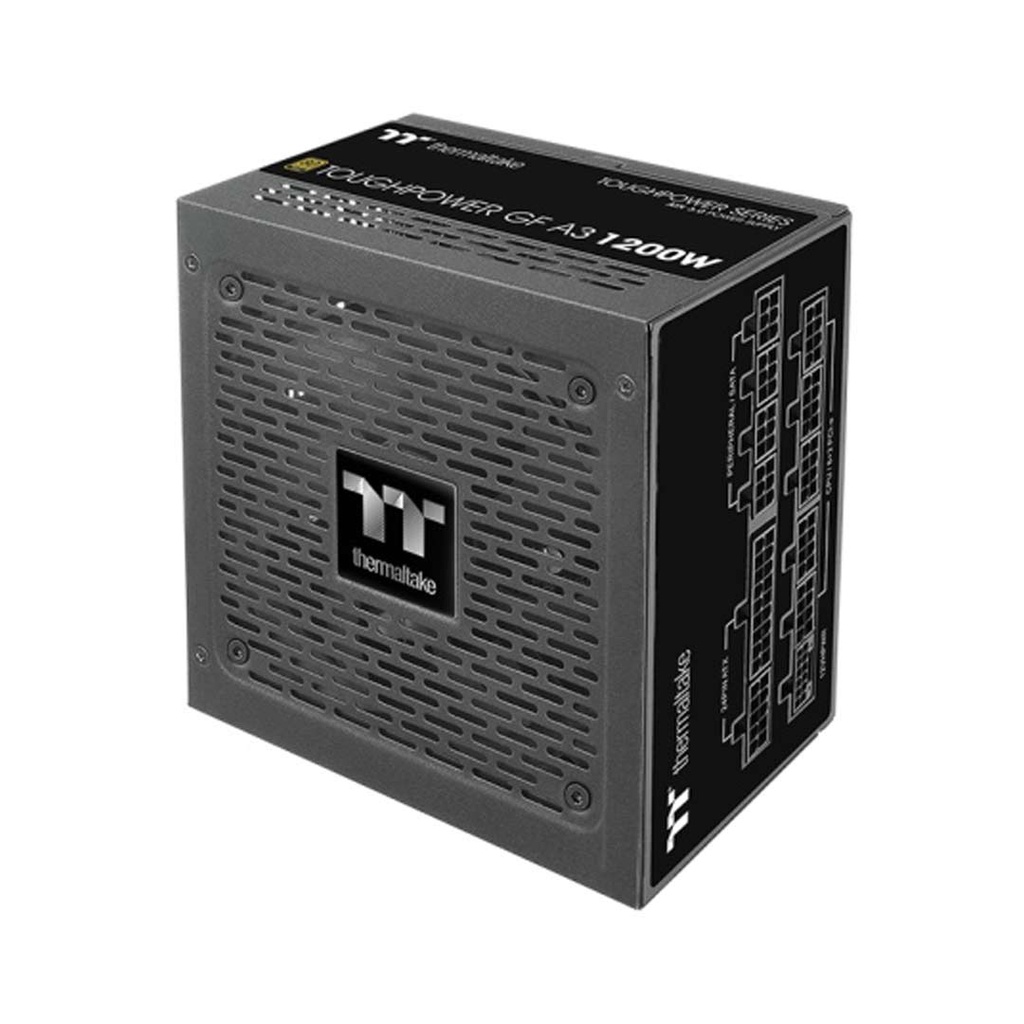

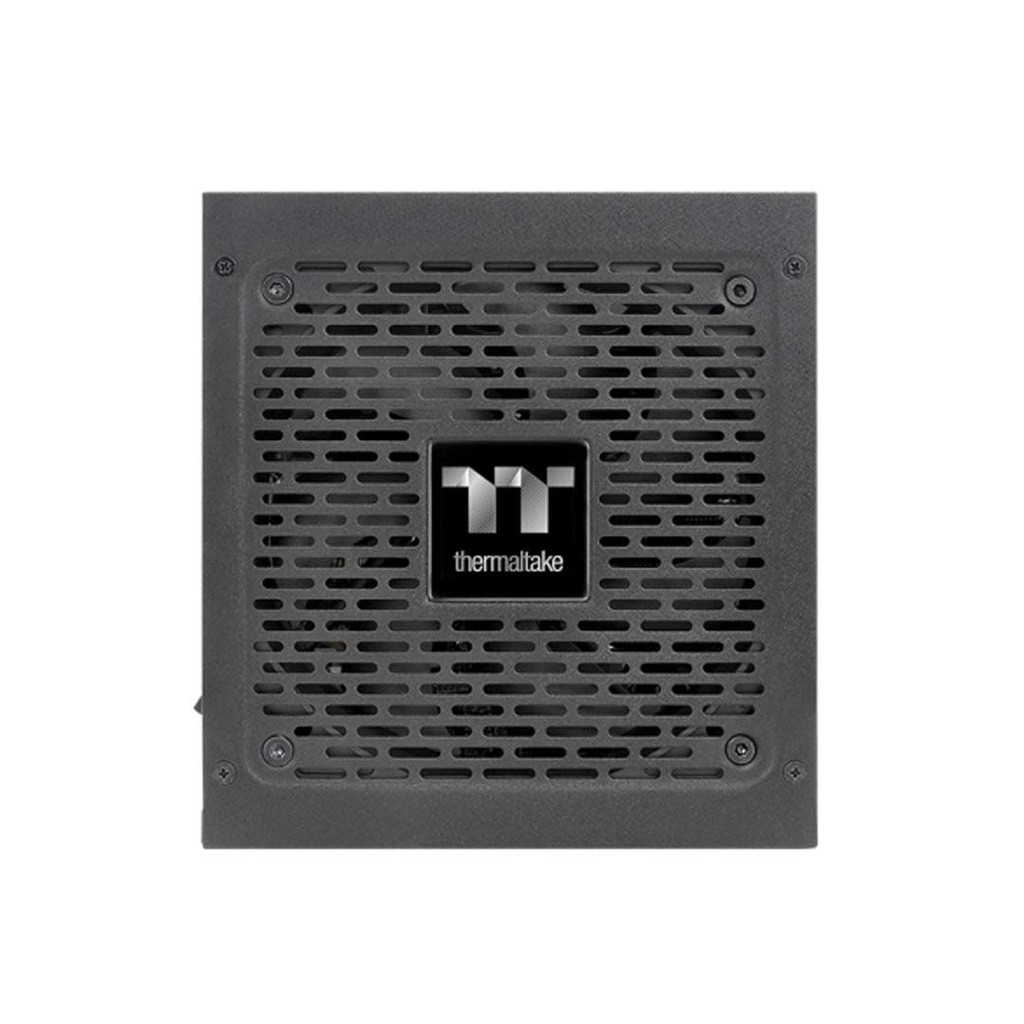

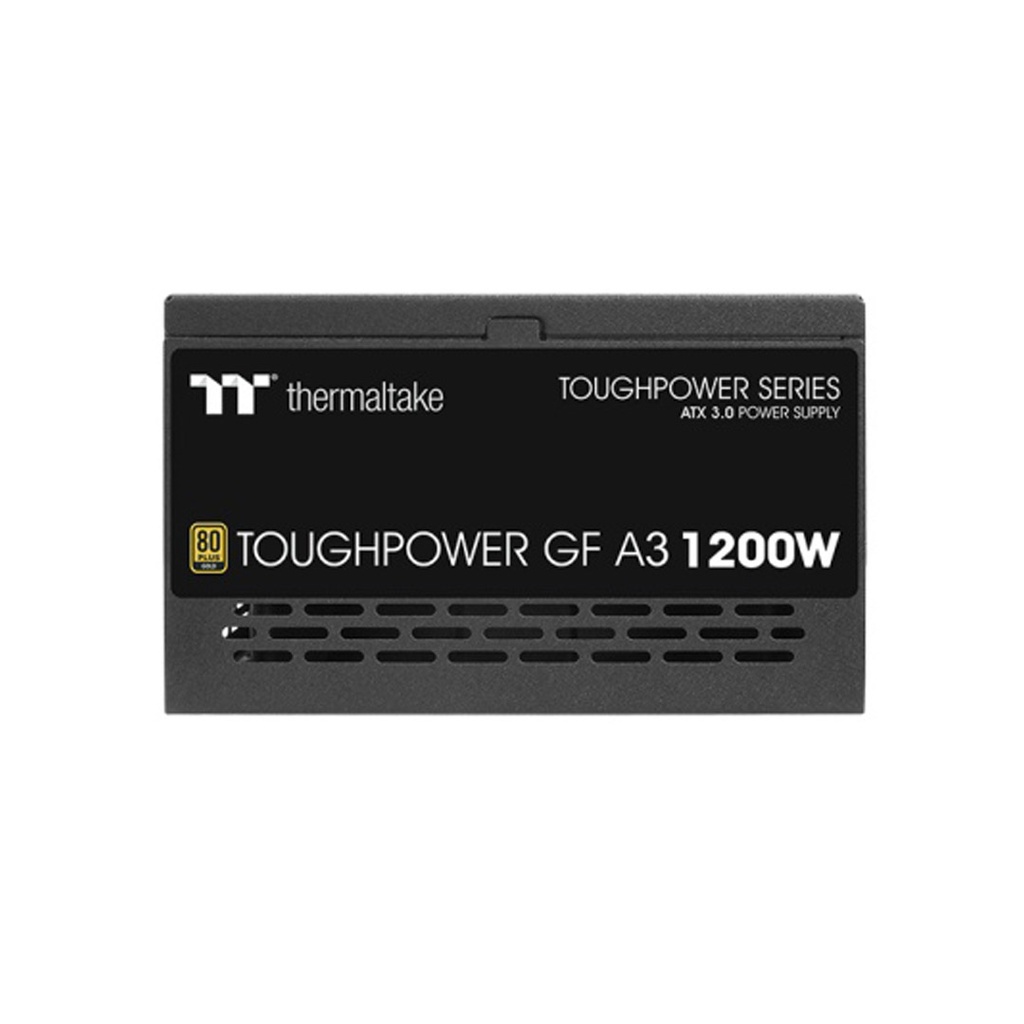

TOUGHPOWER GF A3 80PLUS GOLD Fully Modular 1200W Power Supply
TOUGHPOWER GF A3 80PLUS GOLD Fully Modular 1200W Power Supply
Brand:THERMALTAKE
Specifications
| P/N | PS-TPD-1200FNFAGx-H |
|---|---|
| watts | 1200W |
| Model | TTP-1200AH2FKG |
| Max. Output Capacity | 1200W |
| Color | Black |
| Dimension ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17msec |
| Input Current | 15A Max. |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100 - 240Vac |
| OPERATING TEMPERATURE | 0°C to + 45°C |
| Operating Humidity | 5% to 85%,non-condensing |
| Storage Temperature | -40°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| COOLING SYSTEM | 12cm FDB Fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |
| PCI-E 6+2pin | 5 |
| PCIe 12+4pin | 1(600W) |
| Brand | THERMALTAKE |
